Multifunction Timer Relay Functions Explained for Beginners and Professionals
A multifunction timer relay helps you control things using time. You can set it to wait, repeat, or send quick signals to devices. This device is used in homes, factories, and safety systems. The table below shows some timer functions you can use:
| Function Type | Description |
|---|---|
| On-delay | Waits before turning on after you start it. |
| Interval | Turns on for a certain amount of time. |
| Flasher | Turns on and off over and over again. |
You can find these relays in lights, HVAC, pumps, and security systems.
Key Takeaways
- A multifunction timer relay controls devices by using time. It can do things like on-delay, off-delay, and interval timing.
- Using a multifunction timer relay saves space and money. One device can do many timing jobs. This makes wiring easier and helps stop mistakes.
- Timer relays are useful and work in many places. You can use them in home automation, factories, HVAC systems, lighting, and security systems.
- When you pick a timer relay, look at voltage ratings, timing range, and how strong it is. This helps make sure it fits what you need.
- Cleaning the terminals and checking the connections often helps timer relays work well. This also helps them last longer.

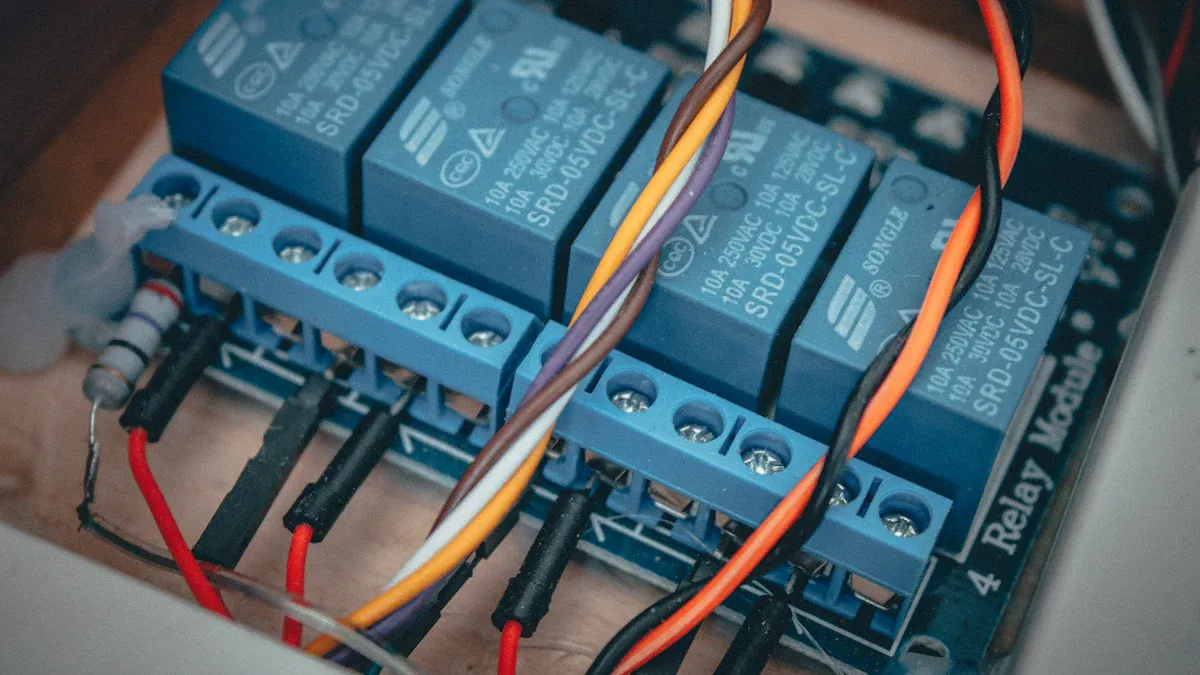

Multifunction Timer Relay Basics
Image Source: pexels
What Is a Multifunction Timer Relay?
A multifunction timer relay helps you control devices with time. You can set it to turn things on after waiting or off after some time. Timer relays are used in many automation systems. When you add voltage, the coil gets power and starts timing. After the set time, the relay changes its output contacts. You can use a timer relay for lights or motors.
Tip: Multifunction timer relays work in homes, factories, and offices. You can pick the timing mode that works best for you.
Key Features
A multi-function timer relay gives you more choices than a single-function timer relay. You can pick from modes like interval, on-delay, off-delay, and repeat cycle. This makes it easy to do different jobs with one device. Timer relays have simple dials or digital settings. You can change the timing for your project. These relays also show clear status lights, so you know when the timer is working.
Here are the main ways multifunction timer relays work:
| Section | Description |
|---|---|
| Input Section | When voltage is added, the coil powers up and starts the timing for output contacts. |
| Timing Section | Adds a delay, which can be electronic or mechanical. |
| Operation | Controls current flow after a set delay, changing the output contacts. |
Why Use a Multifunction Timer Relay?
You get many benefits when you use a multifunction timer relay. You save space and money because one relay does many jobs. Wiring is easier, so you make fewer mistakes. The relay can handle new automation needs without changing everything.
| Advantage | Description |
|---|---|
| Space and Cost Savings | One unit does many timing jobs, so you need fewer relays and spend less money. |
| Versatility | Multifunction relays can do many timing tasks, so you can use them for different needs. |
| Simplified Wiring | One relay for many jobs makes wiring and setup easier, so your system is simpler and safer. |
Timer relays work in lights, HVAC, and security systems. They give you good timing and control for many uses.
Working Principle
How Timer Relays Work
Timer relays help you control devices by using time. You set a delay for the relay. When you turn on the power, the relay starts counting. After the time is up, the relay moves its contacts. This can turn your device on or off. Timer relays are used for things like lights, fans, or alarms. The relay acts like a switch that follows your timing. It gives you steady control because it repeats the timing each time.
Note: Timer relays let you automate jobs. You do not have to turn things on or off yourself.
Selectable Functions
Multifunction timer relays let you pick from many functions. Some models have up to 13 different functions, like Ip and Ii. Small designs may give you 4 functions. Ultra-narrow types also offer 4 choices. Some advanced models have 14 functions with two time settings. You choose the function that fits your job. For example, use on-delay to start a motor after waiting. Use flasher mode to make lights blink.
Common selectable functions are:
- On-delay
- Off-delay
- Interval
- Flasher
- Repeat cycle
- Star-delta
- Special modes like Ip and Ii
You can change the function without getting a new relay. This gives you more ways to use the same relay.
Internal Components
Timer relays have important parts inside. The coil gets power and starts the timer. The timing circuit controls how long the relay waits. Output contacts connect to your devices and switch after the timer ends. Some relays use electronic chips for exact timing. Others use mechanical parts for simple jobs. Some relays have lights to show when they are working. All the parts work together for safe and correct timing.
| Component | Role in Timer Relay |
|---|---|
| Coil | Starts timing when powered |
| Timing Circuit | Sets the delay period |
| Output Contacts | Switch devices on or off |
| Status Indicator | Shows relay activity |
Timer relays are made to be strong and last a long time. You can use them in many places because they are reliable.
Timer Relay Functions
On-Delay
The on-delay function makes a device wait before turning on. You can set how long it waits after power is given. The relay counts down, then turns the device on. You see this in many places.
- In HVAC, the blower waits to start. This stops cold air from blowing too soon.
- In factories, motors start one at a time. This keeps power safe and helps motors work better.
- Pump controllers use on-delay to start pumps at different times. This stops pumps from running together.
- Security systems use on-delay so you have time to enter before the alarm starts.
This function gives you exact timing. You can set the delay for each job. Timer relay devices let you pick what you need.
Off-Delay
The off-delay function keeps a device on after you turn off the power. You set the timer, and the relay waits before turning off. This helps in many control systems.
Here is a table with off-delay timer relay details:
| Timer Type | Time Ranges | Function Type | Pole and Throw Specifications |
|---|---|---|---|
| Off-Delay | 0.1 Sec ~ 10 Sec | Single Function | Single Pole, Double Throw (SPDT) |
| Off-Delay | 3 Sec ~ 300 Sec | Single Function | Single Pole, Double Throw (SPDT) |
| Off-Delay | 0.1 Sec ~ 10 Min | Off-Delay, On-Delay | DPDT (2 Form C) |
| Off-Delay | 0.05 Sec ~ 100 Hrs | Single Function | SPDT (1 Form C) |
| Off-Delay | 0.1 Sec ~ 10 Sec | Single Function | Single Pole, Double Throw (SPDT) |
You find off-delay in lighting systems. When you turn off the switch, the light stays on for a bit. This helps you leave safely. In factories, off-delay keeps fans running after machines stop. This cools the equipment. Timer relays with off-delay make things safer and more comfortable.
Interval
The interval function turns a device on for a set time, then off. You use this when you want something to run for only a short time. The relay starts when power is given and stops after the time ends.
Here is a table about interval functions in automation:
| Feature | Description |
|---|---|
| Relay Function | Interval On |
| Input Voltage | 120V AC/DC |
| Relay Timing Range | 10 - 1000 Minutes |
| Output | 10 Amps SPDT |
| Operating Temperature | -28 C to 65 C (-18 F to 149 F) |
| Life | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| Reset Time | 100ms |
| Startup Time | 0.05 sec |
| Maintain Function Time | 0.01 sec |
| Overall Dimensions | 2" Height x 2" Width x 1.14" Depth |
You use interval for irrigation pumps. The pump runs for a set time, then stops. In labs, interval relays control test tools for exact times. You get steady timing for many jobs.
Flasher
The flasher function makes a device turn on and off again and again. You can set how long each part lasts. This is used in warning lights and alarms.
You see flasher in road safety lights. The relay flashes the light to warn people. In factories, flasher relays make buzzers beep at set times. You can change the timing to fit your needs. Timer relay models have flasher modes for many uses.
Repeat Cycle
Repeat cycle lets a device turn on and off in a loop. You set how long it stays on and off. The relay keeps repeating until you stop it.
- In factories, repeat cycle relays help machines work together. This helps systems share data and make choices.
- Industry 4.0 uses repeat cycle to link new tech. This saves resources and adds value.
You use repeat cycle for conveyor belts. The belt moves, stops, and moves again. This keeps products spaced out and stops jams. Timer relay models let you set the cycle for your job.
Star-Delta
The star-delta function helps big motors start safely. Motors need a lot of power to start. Star-delta lowers this starting power.
- The relay starts the motor in star mode. This uses less power.
- After a set time, the relay switches to delta. The motor goes to full speed.
- Timer relays do this switch for you. You get smooth starts and protect your machines.
You use star-delta in factories with big machines. This makes things work better and last longer.
Other Functions
Some timer relay models have more special functions. You get extra timing for special jobs.
| | | | | |
- Load alternator for pump changers
- Flasher pause first
- Single-shot leading edge voltage control
- Multi-function flasher pause or pulse
- ON delay with control input
- ON/OFF delay
You use these for tricky automation jobs. You can set relays for custom cycles, pauses, or single shots. Timer relay devices give you many ways to control timing.
Tip: Timer relay devices can do many timing jobs. You get adjustable delays, repeat cycles, interval timing, and more. This makes your system smarter and safer.

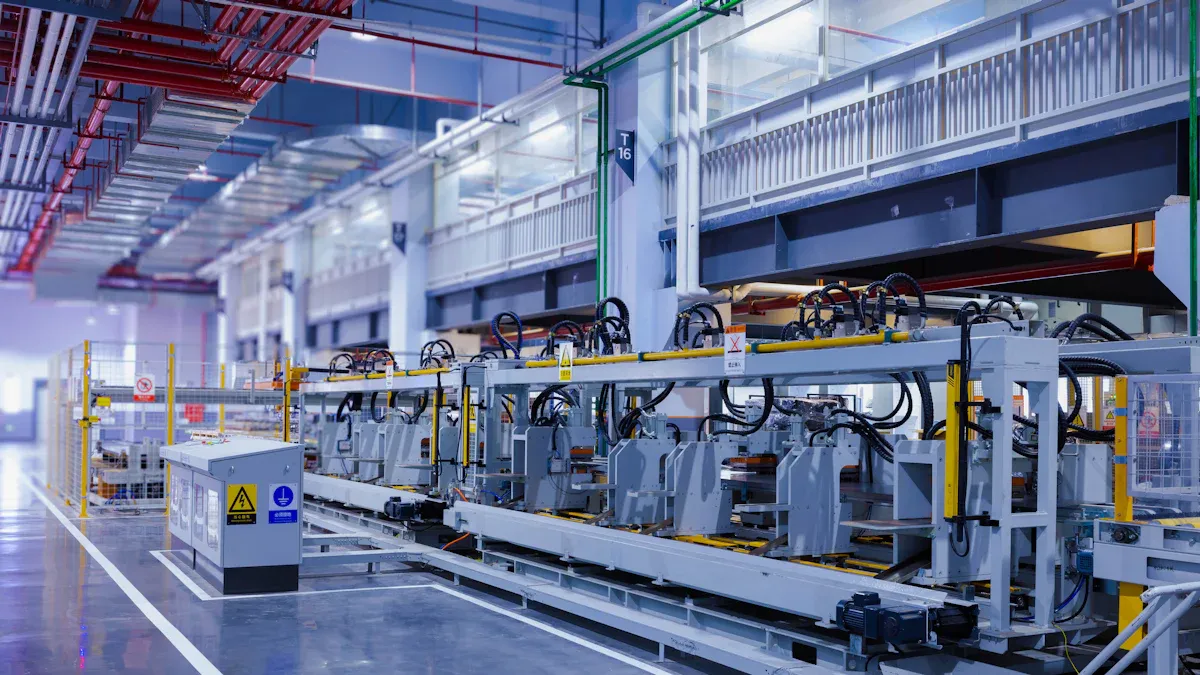

Applications of Multi-Function Timer Relay
Image Source: unsplash
Home Automation
Timer relays help make your home smarter. You can use them to control lights and fans. They also work for appliances with exact timing. Set a timer to turn on garden lights at sunset. You can switch off bathroom fans after a set time. Timer relays help you automate daily routines. This saves energy and makes life more comfortable. You can delay equipment starting to protect devices from power surges. Timer relays fit easily into control panels for home projects.
Industrial Automation
Timer relays are important in factories. You use them to control machines and processes. They help shut down equipment automatically. Timer relays can delay motor starts to protect machines. These functions keep machines safe and reduce damage. Timer relays help save energy by controlling devices at set times. This lowers electricity use and cuts costs. You can trust timer relays for safe and reliable automation.
Timer relays help factories work better. You get good timing control and save resources.
HVAC Systems
Timer relays control fans, compressors, and pumps in HVAC systems. They help with timing for heating and cooling cycles. You can set a timer to delay fan start. This stops cold air before the heater warms up. Timer relays also shut down equipment automatically. Systems run only when needed. This saves energy and helps equipment last longer. Timer relays make HVAC systems work better and feel more comfortable.
Lighting Control
Timer relays make lighting easy to control. You set timers to turn lights on and off at certain times. This helps keep places safe and saves energy. Timer relays can flash warning lights or make lights blink for decoration. You use timer relays in control panels for outdoor and indoor lights. Timer relays handle lighting schedules without you doing it yourself.
Security Systems
Timer relays add smart timing to security systems. You use them for access control and alarms. Timer relays let you unlock doors for a short time. They can sound alarms for a few seconds. You can set delays for dialers and guard patrols. Timer relays send pulses for warning lights. They also activate relays quickly for fast responses.
| Feature/Application | Description |
|---|---|
| Access Control | Unlocks doors for a short time |
| Siren/Bell Cut Off | Turns on alarms for a few seconds |
| Dialer Delay | Waits before making a call |
| Guard Tour Supervisory Timer | Times guard patrols |
| Delayed Release/Operate | Delays actions for better safety |
| Pulser/Flasher | Sends timed flashes or pulses |
| Momentary Relay Activation | Turns on relays for a short moment |
Timer relays work in many control systems. You get flexible timing for different security needs.
Timer relays work in homes, factories, and offices. You can use them for many timing jobs.
Selecting Timer Relays
Key Criteria
When picking timer relays, you need to check a few things. First, look at the voltage and current ratings. Make sure the relay fits your system. Think about the timing range you need. Some relays give short delays, others work for longer times. Check how many functions the relay has. More functions let you do more timing jobs. For factories, choose relays that can handle tough places. Pick one that works in hot or cold weather. Good relays last a long time and work well for many uses.
| Criteria | Why It Matters |
|---|---|
| Voltage/Current Rating | Prevents overload and damage |
| Timing Range | Matches your timing requirements |
| Function Options | Supports different timing control jobs |
| Durability | Handles industrial applications |
| Reliability | Ensures consistent timer performance |
Tips for Beginners
If you are new to timer relays, follow some easy steps. Always pick a relay that fits your job. Use the right wires and make tight connections. Make sure your circuit matches the relay’s voltage and current. Do not use too much power with the relay. Mount the relay so it does not shake or move. Check and clean the relay as the maker says. Change old relays before they stop working. Do not change the relay unless an expert helps you.
Tip: These steps help keep your projects safe and working well.
- Pick the right relay for your job.
- Wire the relay right and check all wires.
- Use a control circuit that matches the relay.
- Do not go over the relay’s voltage or current.
- Mount the relay so it stays in place.
- Check and clean the relay often.
- Change relays that are getting old.
- Ask an expert before making changes.
Advice for Professionals
Experts can get the best from timer relays by using smart tips. Turn off the power before you start. Always use the maker’s wiring guide. Make sure all wires are tight. Mount the relay so it stays cool. Test the relay before using it in your system. Check the relay and wires often. Look at the power supply and check for rust on wires. Make sure the time settings are right and the relay is not too hot or cold. Pick a duty cycle that fits your job and keeps the relay safe.
- Turn off power before you start.
- Use the manual for wiring.
- Make all connections tight.
- Mount the relay the right way.
- Test the relay after you install it.
- Check the relay often to keep it working.
- Look at the power and wires.
- Make sure time and temperature are right.
- Pick a duty cycle that stops overheating.
- Make sure the relay can handle the job.
Note: Using these tips helps your timer relay last longer and work better.
Installation and Maintenance
Installation Steps
You can put in timer relays by following easy steps. First, turn off the power to stay safe. Take off the wire covering so you get a good connection. Next, look for the terminals on the timer relay. There are places for the power supply, control input, and output contacts. Connect the power wires to the right spots. Make sure the wires match the positive and negative sides. Attach the control wires to the input terminals. Last, connect your output device to the relay’s output contacts. This lets the timer turn your device on or off.
Installation Steps:
- Turn off power and remove wire covering.
- Find power, control, and output terminals on the timer relay.
- Connect power wires with the right positive and negative sides.
- Attach control wires to input terminals.
- Connect the output device to the relay’s output contacts.
Tip: Always check your wires before turning the power back on. This helps stop timer relay damage.
Common Mistakes
Problems can happen if you skip steps. Loose wires or rust can stop devices from working. If you use too much power, the timer may spark or get too hot. Shaking or temperature changes can make wires loose and cause problems. Sometimes, a broken cam or gear makes the relay buzz but not work.
| Issue | Common Mistakes Leading to Malfunction |
|---|---|
| Output Devices Aren’t Responding | Loose wires or rust can stop devices from turning on. |
| Timer Sparks or Overheats | Too much power or old contacts can make it overheat. |
| Intermittent Operation | Loose wires from shaking or heat can cause problems. |
| Humming Noise Without Operation | Broken cam or gear can stop the relay from working. |
You might see overheating if the relay is too weak or contacts are not tight. Some people forget to use the manual for relay functions. Others do not think about heat or wetness, which can hurt timer relays.
- Overheating from weak relay or loose contacts.
- Not using the manual for relay functions.
- Not thinking about heat or wetness.
Note: Always read the manual and check your area before putting in timer relays.
Maintenance Tips
You can keep timer relays working well by taking care of them. Clean the terminals to stop rust. Tighten loose wires so your timer works every time. Look at the relay for sparks or buzzing sounds. Change old contacts before they break. Test the timer after you fix anything. If you use timer relays in machines, check them more often. This helps stop problems and keeps your system safe.
- Clean and tighten terminals.
- Change old contacts.
- Test timer after fixing it.
- Check timer relays often in machines.
😊 Good care helps timer relays last longer and work better for all your timing needs.
You have learned how timer relays help control timing in many places. You can use a timer relay in factories, on conveyor belts, and to start machines. Timer relays wait before sending commands. This makes automation safer and more dependable. When picking a timer, look at how much load it can handle. Also check how accurate it is and if it works in your environment. This helps stop damage and keeps your system working right.
FAQ
What is the difference between a multifunction timer relay and a regular timer relay?
A multifunction timer relay can do many timing jobs. A regular timer relay only does one job. You get more choices with a multifunction timer relay.
Can you adjust the timing on a multifunction timer relay?
Yes, you can change the timing with dials or buttons. You pick the delay or cycle time you want. Most models let you change the settings without trouble.
Where can you use multifunction timer relays?
You can use them at home, in factories, or in offices. They work for lights, fans, pumps, alarms, and other things. You get good timing control in many places.
Do multifunction timer relays need special wiring?
You do not need special wires for these relays. Just connect power, control, and output wires to the right spots. Always follow the maker’s instructions to stay safe.
