The Role of Time Relay in Modern HVAC Control Systems

Imagine you want your HVAC system to start a fan. The fan should start only after the compressor runs for some time. This is when a time relay in hvac helps. You use these relays to control when parts turn on or off. This keeps everything working well. Time delay relays help protect your equipment. They also save energy. They make your system last longer. They stop overloads and short cycling.

Evidence Description	Contribution to Energy Efficiency and Equipment Longevity
HVAC relays let the system react to temperature changes by itself.	This helps the system use less energy and last longer.
HVAC relays make the system more reliable and stop overloads.	This is important for better performance and longer life.

With automation, your HVAC system gets smarter and more reliable.

Key Takeaways

Time relays help control when HVAC parts start or stop. This makes the system work better.
Time relays stop short cycling. This keeps equipment safe and helps it last longer.
There are different time relays. On-delay and off-delay do special jobs in HVAC systems.
Time relays help save energy. They make sure equipment works only when needed. This saves money.
Picking and installing the right time relays is very important. It helps HVAC systems work their best.
Checking time relays often stops breakdowns. It also helps avoid expensive repairs.
Using time relays makes HVAC systems smarter. They can change and adjust to new conditions.
Time relays help keep things safe. They stop electrical surges and make sure everything works well.

Time Relay in HVAC

Image Source: unsplash

Definition

You see a time relay in hvac when you need to control equipment. It helps decide when things turn on or off. A time relay is an electrical device that adds a delay. This delay happens before a circuit works. Unlike a regular relay, this device waits for a set time. Then it turns its contacts on or off. You find time relays in hvac systems, factories, and big buildings. These relays help control fans and water systems. They also help save energy. They make buildings more comfortable.

How It Works

A time relay in hvac controls when things happen. When you send a signal, the relay waits. It does not work right away. It waits for the delay you set. After waiting, the relay opens or closes its contacts. This timing is important in hvac. It lets you control heating, cooling, or ventilation. For example, a time relay can make a fan start after the compressor runs. This stops short cycling. It helps your system work better.

Regular relays work instantly. Time relays add a delay. This delay helps your hvac system avoid quick changes. Quick changes can cause problems. You get better energy use and longer equipment life. Time delay relays help you control different parts of your system. You can set up sequences. Each part starts or stops at the right time.

Tip: Using time relays can help you stop system overloads. They also reduce wear on your equipment.

Key Components

A time relay has important parts. You should know these to understand how it works:

Coil: This part gets the signal and starts timing.
Contacts: These open or close after the delay.
Timing Mechanism: This sets how long the delay lasts.
Housing: This protects the parts inside.

Timing and coordination are important for your hvac system. The table below shows how timing helps performance:

Impact of Timing and Coordination on HVAC Performance	Description
Consistent Thermal Comfort	Keeps temperature even in all zones.
Supports Ventilation and Indoor Air Quality (IAQ)	Improves air changes for better air.
Improves Energy Performance	Helps with load calculations and zoning.
Integration with Building Management Systems (BMS)	Allows smart control of hvac.
Reduces Noise and Vibration	Lowers noise in sensitive places.
Ensures Reliability and Redundancy	Important for buildings that need to work all the time.
Avoids Duct Routing Clashes and Conflicts	Stops mistakes with better planning.
Right-Sizing of HVAC Systems	Makes systems work better and saves money.

You can see that time relays help with comfort, safety, and efficiency. Automation with time relays also makes your system more reliable.

Time Delay Relay

Types

There are different types of time delay relay in HVAC. Each type helps control when equipment turns on or off. The most common types are on-delay timer relay, off-delay timer relay, and recycle timer relay. These relays help manage fans, compressors, and other devices. You can see how each type works in the table below:

Type of Relay	Description	Application in HVAC Systems
On-delay timer relay	Starts timing when input voltage is applied and energizes output after the set time.	Ensures fan reaches speed before energizing the blower.
Off-delay timer relay	Starts timing after a trigger is applied and output is energized until the trigger is removed.	Ensures motor cools down before stopping, e.g., in air conditioners.
Recycle timer relay	Turns on and off at regular intervals.	Cycles power to devices, like turning compressor on/off to prevent overheating.

These relays help your HVAC system work better. The right relay stops problems like short cycling and overheating.

On-Delay vs. Off-Delay

It is important to know how on-delay and off-delay relays are different. These two types do not work the same way. An on-delay relay waits before it turns on the output after you send a signal. This delay lets fans or compressors get to the right speed first. An off-delay relay turns on the output right away when you send a signal. The output stays on for a set time after you turn off the input. This helps motors cool down before they stop.

Here is a simple table to show how these relays work:

Relay Type	Activation Behavior	Delay Duration
On-Delay	Introduces a delay before activating the output signal after the input is received.	Output remains inactive for a period.
Off-Delay	Activates the output immediately upon receiving the input signal.	Output remains active for a duration after input is turned off.

Think of it this way:

On delay timer: There is a wait between the input and output.
Off delay timer: There is a wait between turning off the input and turning off the output.

Tip: Picking the right time delay relay keeps your equipment safe and helps your system work better.

Digital and Electromechanical

There are two main kinds of time delay relays in HVAC: digital and electromechanical. Digital relays use electronic parts to control timing. You can set the delay with buttons or switches. These relays are easy to adjust and give you exact control. Electromechanical relays use moving parts and coils. You set the delay with dials or knobs. These relays work well in tough places and can handle high currents.

Digital time delay relays have more features, like programmable settings and better accuracy. Electromechanical relays cost less and last longer in some cases. You should pick the type that works best for your system.

Note: A timer delay relay can help automate HVAC jobs and make your system more reliable.

Functions

Sequencing

Time delay relays help control when HVAC parts turn on or off. They make sure each part starts or stops at the right time. This keeps the system from having problems. You can set the order for fans, compressors, and pumps. This helps everything work together.

Time delay relays control when HVAC parts start or stop.
When you turn on the trigger, the output stays off. When you turn off the trigger, the output turns on and waits.
If you turn on the trigger again before the wait is over, the output stays on. This lets the system run safely and keeps cycling.

Using timer delay relay means not all parts start at once. This lowers stress on the system. It also helps stop overloads. Your HVAC system works better and lasts longer.

Tip: Good timing with time delay relays helps your HVAC system last longer and keeps you comfortable.

System Protection

It is important to keep your HVAC equipment safe. Time delay relays help stop short cycling and protect compressors. Short cycling is when the system turns on and off too fast. This can hurt compressors and other parts.

Here is a table that shows how time delay relays help protect your system:

Feature	Description
Lockout Delay	Waits before letting the compressor restart until it is safe.
Elimination of Relay Chatter	Adds a short wait to stop fast on-off cycles from the thermostat.

When you use time delay relays, you get these benefits:

Compressors are safe from short cycling.
Your HVAC equipment lasts longer.
You stop damage from fast on-off cycles.

Littelfuse makes time delay relays to control power to compressors. These relays use solid-state circuits. They can delay turning on or off. This keeps your compressor safe and helps it last longer.

Note: An off-delay relay lets the motor cool down before stopping. This keeps your equipment from getting too hot.

Energy Efficiency

Saving energy is important for HVAC systems. Time delay relays help by making sure parts only run when needed. This stops short cycling, which wastes energy and wears out parts.

Time delay relays stop compressors from turning on and off too much.
You save energy and make your system work better.

Automation with time delay relays lets you control when each part runs. You do not run fans or compressors when they are not needed. This saves money and helps your equipment last longer.

Tip: Using time delay relays the smart way makes your HVAC system save energy and money.

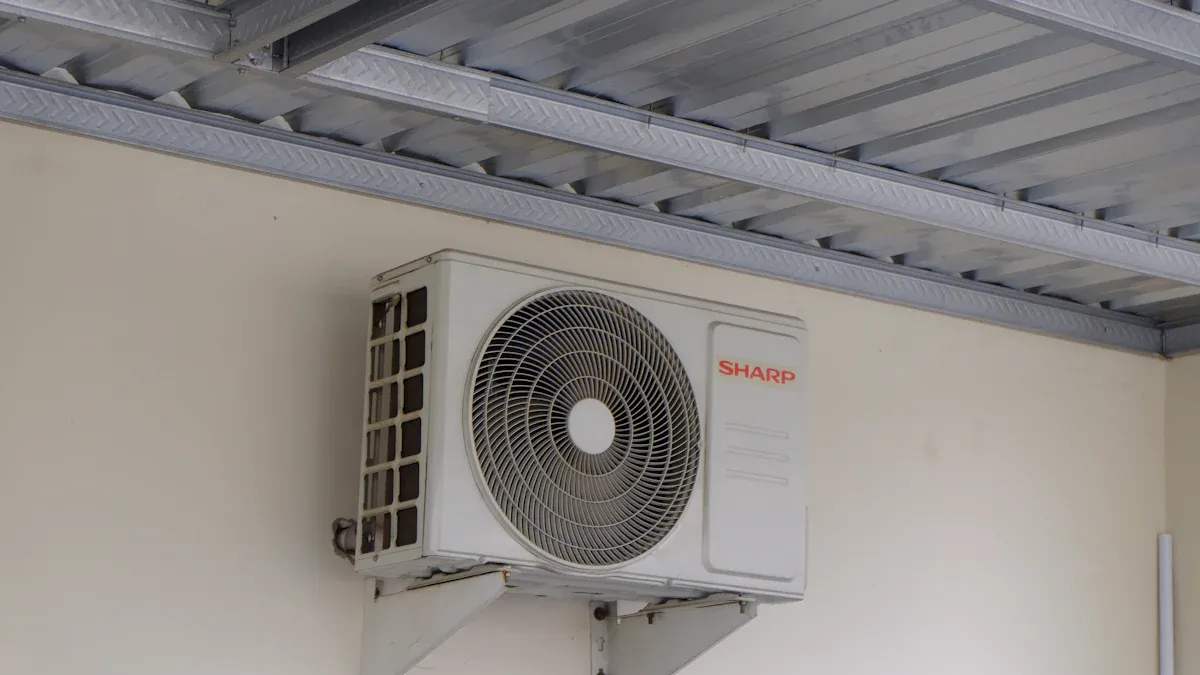

Applications

Image Source: unsplash

Fan Control

You often need to control when fans start or stop in your HVAC system. A time delay relay helps you do this with precision. When you use a time relay, you can set a delay for the fan to turn on after the heating or cooling equipment starts. This delay keeps the fan from blowing cold or hot air before the system is ready. The CT Series relay combines both delay-on-make and delay-on-break features. This means you can control when the fan starts and stops, making your system work better in both heating and cooling modes.

For example, the FCT18-M Multifunction Time Delay Relay helps you manage the timing of your fan. It stops the fan from starting and stopping too quickly. This process, called short cycling, can wear out your equipment and waste energy. By using a relay, you make sure the fan runs only when needed. This saves energy and helps your fan last longer. When you set up the timing, you also create a sequence that improves energy use and reduces repairs. Your HVAC system becomes more reliable and efficient.

Tip: Setting the right delay for your fan can make your home or building more comfortable and save you money on repairs.

Compressor Management

You need to protect your compressor from damage. Time relays play a big role in this. They help you set delays so the compressor does not start and stop too often. This is important because short cycling can cause the compressor to fail early. You can use configurable delays to make sure the compressor only restarts when it is safe.

You can stagger the start times of fans and compressors. This prevents electrical overloads.
Staggering also keeps power spikes low, which is very important in large buildings.
Using time relays can help you save about 8-12% on energy costs.
Many modern systems have built-in delays to let refrigerant pressures equalize before the compressor starts.

When you use these features, your compressor works smoothly and lasts longer. You also avoid costly repairs and downtime.

Water System Timing

Water systems in HVAC need careful timing. You use time relays to control pumps and valves. For example, you might want a pump to run for a set time after the system turns off. This helps clear water from pipes and stops freezing or damage. You can also use relays to delay the start of a pump until other parts of the system are ready. This keeps everything working in the right order.

A simple table shows how timing helps water systems:

Function	Benefit
Delayed pump start	Prevents water hammer
Timed pump stop	Clears water from pipes
Sequenced valve timing	Avoids pressure surges

When you use time relays in water systems, you protect your equipment and keep your HVAC running smoothly.

Defrost Cycles

You often see frost build up on the coils in refrigeration-based HVAC systems. This frost can block airflow and lower system efficiency. You need a way to remove this frost so your system works well. Defrost cycles help you solve this problem. When you use a time delay relay, you can control when the defrost cycle starts and stops.

A defrost cycle melts the frost on the coils. You do not want the system to run a defrost cycle too often or not enough. If you run it too often, you waste energy. If you do not run it enough, frost builds up and hurts performance. Time relays help you find the right balance.

Here is how time relays help you manage defrost cycles:

Time relays start and stop defrost cycles at the right times.
You can schedule defrost cycles to happen at regular intervals.
The system melts frost effectively, which keeps your products safe and your system efficient.

You set the timer so the defrost cycle begins after a certain amount of time. The relay then ends the cycle after the frost has melted. This process keeps your coils clean and your system running smoothly. You do not have to guess when to start or stop the defrost. The relay does it for you.

When you use a time relay for defrost cycles, you get several benefits:

Your system uses less energy because it only runs defrost cycles when needed.
You keep the coils free of frost, so air moves easily through the system.
You protect your equipment from damage caused by too much frost.
You keep food and other products at the right temperature.

Tip: Set your defrost timer based on how much frost you see and how your system runs. This helps you save energy and avoid problems.

Many modern HVAC systems use digital timers for even more control. You can adjust the timing with buttons or a screen. Some systems let you change the schedule for different times of day or different seasons. This flexibility helps you match the defrost cycle to your needs.

If you want your refrigeration system to last longer and work better, use a time relay to manage defrost cycles. You will see fewer breakdowns and lower energy bills. Your system will stay reliable, and your products will stay safe.

Benefits

Reliability

You want your HVAC system to work every time you need it. Time relays help you reach this goal. These devices make sure each part of your system starts and stops at the right moment. When you use time relays, you avoid problems like short cycling and overloads. Your fans, compressors, and pumps run in the correct order. This keeps your system steady and strong.

A reliable HVAC system means fewer breakdowns. You spend less time fixing things. You also keep your building comfortable. Time relays help you plan the timing for each part. This planning stops sudden changes that can hurt your equipment. You get smooth operation and better performance.

Tip: Set your time relays to match your system’s needs. This helps you avoid surprises and keeps everything running smoothly.

Here is a quick look at how time relays boost reliability:

Reliability Factor	How Time Relays Help
Prevents Short Cycling	Stops rapid on-off cycles
Reduces Overloads	Staggers start times
Improves Sequencing	Controls order of operations
Extends Equipment Life	Lowers wear and tear

Safety

You need your HVAC system to be safe for everyone. Time relays play a big role in safety. These devices automate timing functions. You do not have to worry about manual mistakes. Time relays prevent electrical surges by controlling when equipment turns on or off. This keeps your system from getting damaged.

Time relays also make sure machines only run when needed. This reduces wear and tear. You lower the risk of accidents because your system does not start or stop too quickly. In emergency systems, time relays can delay activation. This gives you extra protection and helps you follow safety rules.

When you use time relays, you make your building safer. You protect your equipment and the people inside. You also meet safety standards more easily.

Note: Time relays add an extra layer of safety by controlling power and timing in your HVAC system.

Cost Savings

You want to save money on your HVAC system. Time relays help you do this in several ways:

Smart systems use time relays to adapt to occupancy and temperature. You do not waste energy when rooms are empty.
Time relays help you shave peak loads. Your system can pre-cool or pre-heat spaces during busy times. You avoid high energy costs.
Optimized usage means less strain on your HVAC equipment. You spend less on repairs and replacements.

When you use time relays, you see lower energy bills. Your equipment lasts longer. You also cut down on maintenance costs. These savings add up over time.

Cost Saving Method	Benefit
Reduced Energy Waste	Lower utility bills
Peak Load Shaving	Avoids expensive demand fees
Less Wear and Tear	Fewer repairs and replacements

Tip: Invest in time relays for your HVAC system. You will save money and keep your system running better for years.

Selection and Integration

Criteria

When you choose a time relay for your HVAC system, you need to look at several important factors. Picking the right relay helps your system work safely and efficiently. Here are the main things you should check:

Delay Mode Selection: Decide if you need a power-on delay or a power-off delay. This depends on how your control circuit works. Make sure the reset time is longer than the relay’s action time. This prevents the relay from acting too soon or making mistakes.
Timer Relay Type Selection: If you do not need high accuracy, you can use electromagnetic or air damping relays. For jobs that need precise timing, electronic relays work best.
Coil Voltage Selection: Match the relay’s coil voltage to your control circuit. Common voltages include 12VDC, 24VDC, 110VAC, and 220VAC. Using the wrong voltage can damage your relay or make it fail.
Power Parameter Changes: If your system has big voltage changes, air damping or electric relays handle these better. Avoid electric relays if your power frequency changes a lot.

Tip: Always check your HVAC system’s needs before buying a time relay. The right choice keeps your equipment safe and your system running smoothly.

Installation

You want your time relay to work well and last a long time. Good installation makes a big difference. Follow these steps to set up your relay:

Mount the Relay: Put the relay in its spot. Use screws for panel-mounted relays. Snap DIN rail relays onto the rail.
Connect the Coil: Find the coil terminals, usually marked A1 and A2. Connect your power source to these terminals. Make sure the voltage matches the relay’s rating.
Wire the Contacts: Connect one wire from your power source to the Common (COM) terminal. Pick the Normally Open (NO) or Normally Closed (NC) contact based on what you need.
Verify Connections: Check all wires and screws. Make sure no bare wires touch other terminals.
Power On and Test: Turn on the power. Watch how the relay works. Make sure your load turns on and off as expected.

Note: Careful wiring and testing prevent problems and keep your HVAC system safe.

Maintenance

Regular maintenance keeps your time relay working well. You should inspect the relay every few months. Look for loose wires, dust, or signs of wear. Clean the relay with a dry cloth. Tighten any loose screws. Test the relay by turning the system on and off. If you see delays or hear strange noises, replace the relay.

You can also check the timing settings. Make sure the delay matches your system’s needs. If you change your HVAC setup, adjust the relay settings. Good maintenance helps you avoid breakdowns and costly repairs.

Tip: Set a reminder to check your time relays. Small checks can save you big problems later.

You can see that a time relay in hvac helps protect your system. It also makes it work better, last longer, and saves money. A time delay relay stops short cycling. It helps motors start and stop in the right order. This makes hvac systems run more smoothly. When you pick and use relays, look at these things:

Factor	Why It Matters
Timing Functions	Makes sure it works for your job
Voltage Compatibility	Stops your relay from breaking
Contact Configuration	Decides how the circuits turn on or off
Timing Range	Gives you the right amount of delay
Mounting Style	Lets you put it in the right place
Environmental Rating	Keeps out dust and water
User Interface	Makes it easy to set up

Automation will keep getting better. Soon, smart systems and AI will help fix problems, save energy, and change settings for you.

FAQ

What does a time relay do in an HVAC system?

A time relay controls when parts of your HVAC system turn on or off. You set a delay, and the relay waits before making a change. This helps your system work better.

Why should you use a time delay relay?

You use a time delay relay to protect your equipment. It stops parts from starting or stopping too quickly. This saves energy and helps your system last longer.

How do you pick the right time relay?

You check the voltage, timing range, and type of relay. You match these to your HVAC system. You also look at how easy it is to set up and use.

Tip: Always read the relay’s manual before installing it.

Can you install a time relay by yourself?

You can install a time relay if you know basic wiring. You follow the instructions and connect the wires to the right terminals. If you feel unsure, ask a professional for help.

What problems can a faulty time relay cause?

A faulty time relay can make your system start or stop at the wrong time. This can cause short cycling, overheating, or even damage to your equipment.

Problem	What Happens
Short cycling	System turns on and off
Overheating	Parts get too hot
Equipment wear	Parts break faster

How often should you check your time relay?

You should check your time relay every few months. You look for loose wires, dust, or signs of wear. Regular checks help you avoid bigger problems.

Are digital time relays better than electromechanical ones?

Digital time relays give you more control and accuracy. Electromechanical relays cost less and work well in tough places. You choose the one that fits your needs.

Note: Digital relays let you change settings with buttons or screens.
